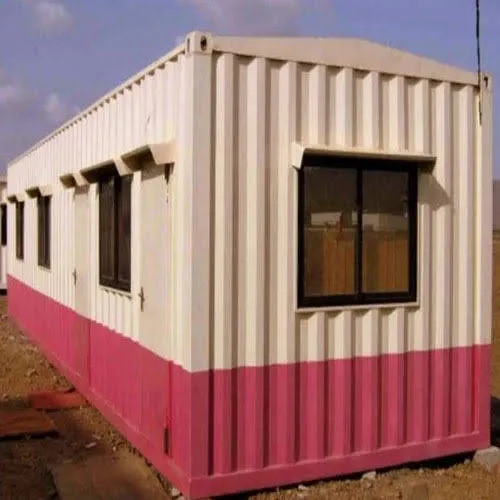

Labour Accommodation Cabins

Optimized for large-scale construction sites and remote industrial projects, our Labour Accommodation Cabins provide a dignified and high-capacity living solution for your workforce. These modular units are engineered for rapid deployment and extreme durability, ensuring a safe, thermally insulated, and hygienic environment. Whether you need a single bunkhouse or a multi-unit colony, our cabins are designed to withstand heavy usage while providing essential comfort to your team.

* Common Sizes: 20X10, 40X10, and 40X12 (Customizable for Bunk Bed layouts).

* Main Structure: Robust 100mm/150mm ISMC channel base with heavy-duty MS square pipe framing for multi-stacking capability.

* Wall Insulation: 50mm to 100mm EPS or Rockwool sandwich panels for excellent heat resistance and noise reduction.

* Flooring: 18mm Marine-grade plywood with thick industrial-grade anti-skid PVC vinyl or heavy-duty aluminum checkered plate for high foot traffic.

* Roofing: Sloped, leak-proof GI corrugated sheets with an insulated false ceiling for interior cooling.

* Windows & Doors: Robust MS or Aluminum sliding windows with integrated safety grills and heavy-duty insulated doors with secure locking.

* Electrical Layout: Concealed fire-retardant wiring with multiple 5A sockets for mobile charging and 15A points for desert coolers or heaters.

* Lighting: High-efficiency LED batten lights for low power consumption and long life.

* Ventilation: Provisions for exhaust fans and AC/Cooler mounting brackets to ensure fresh air circulation.

* Plumbing (Optional): Integrated toilet blocks or washbasins with heavy-duty PVC piping for easy site connection.

Operational Advantages

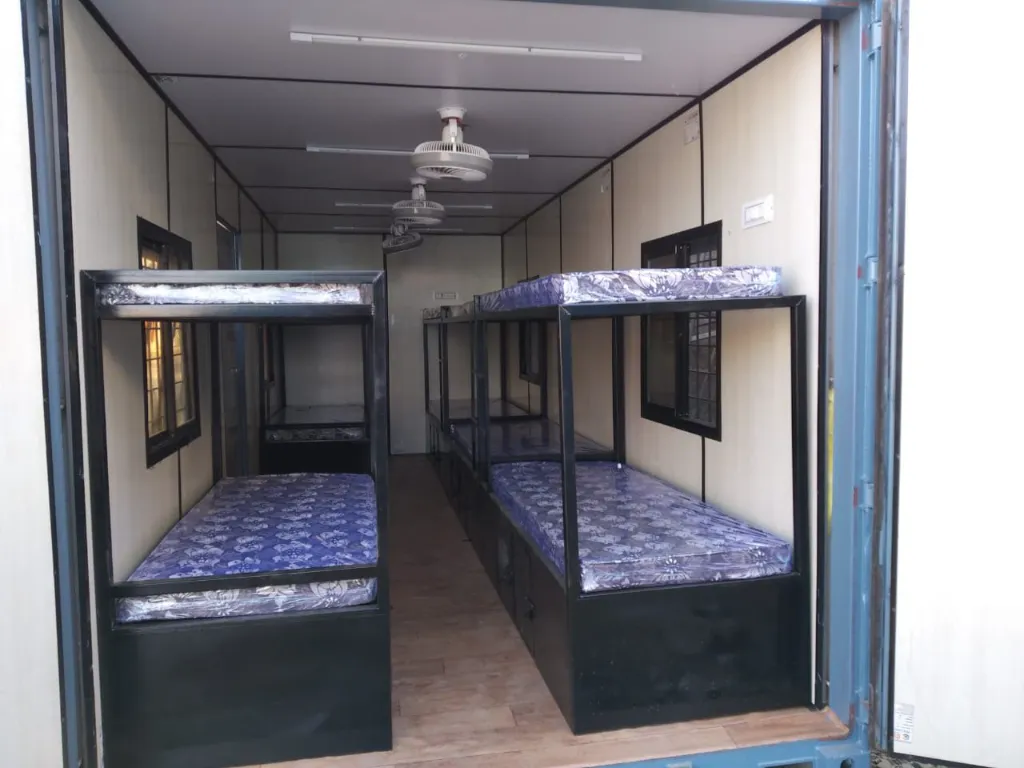

* High Occupancy Design: Optimized layouts to accommodate 4 to 12 workers per unit using bunk bed configurations.

* Rapid Site Mobilization: Fully factory-built; units can be placed on simple concrete blocks and are ready for use immediately.

* Weather & Pest Resistant: Fully sealed joints to prevent water leakage and pest entry, ensuring a healthy living environment.

* Relocatable: Heavy-duty lifting hooks allow for easy relocation as your project moves from one phase to another.

* Construction Site Base Camps

* Mining & Oil Field Staff Housing

* Seasonal Farm Worker Accommodation
